SATGEAR MM6 - Starlink Mini Vertical Surface Mount (MM1 + VSM)
***SHIPS WORLDWIDE***
The SatGear MM6 is a complete vertical mounting solution designed to securely install and protect your Starlink Mini on vertical surfaces such as vehicle side panels, RV walls, trailers, semi trucks, offroad vehicles, vans, service vehicles, equipment enclosures, shipping containers, and other upright surfaces where horizontal mounting is not practical.
The MM6 combines the proven protection of the SatGear MM1 Protective Mount with the VSM (Vertical Surface Mount) attachment, creating a fully integrated system that allows your Starlink Mini to be securely mounted, protected, and optimally positioned on vertical surfaces.
Unlike open mounts, the MM6 features a fully enclosed aluminum protective housing paired with a durable 5mm polycarbonate top cover. This design protects your Starlink Mini from all sides — top, bottom, and edges — helping shield it from impact, debris, vibration and harsh environmental conditions while maintaining full satellite signal performance.
Think of it like a phone case combined with a screen protector — built specifically for your Starlink Mini.
The MM6 provides complete protection while enabling flexible vertical installation across mobile and fixed applications.
LIMITED TIME SPECIAL - FREE 12V (14AWG) cable to plug Starlink Mini into a cigarette lighter in 6', 10', 15' and 25' lengths ($29-59 Value). You can view the 12V cable here.
Note: Starlink Satellite Internet System Sold Separately
United States, Canada and Mexico orders ship via UPS
Choose your mounting setup
3 secure installation methods
| Setup | Where it fits | Installation details |
|---|---|---|

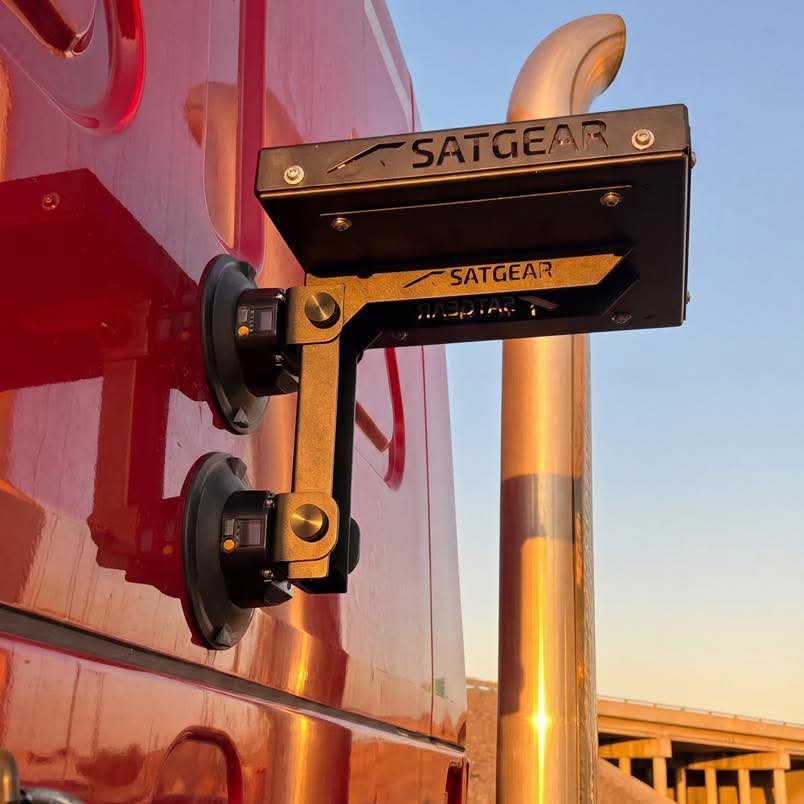

| Suction Cup Mounting | Smooth vehicle panels, RV walls, glass and other smooth surfaces | Attach using two large 6-inch heavy-duty suction cups for an extremely strong hold on smooth surfaces. Customers can choose between manual pump suction cups or optional electronic suction cups with automatic self-pumping technology. This allows secure mounting on vehicle panels, RV walls, glass, and other smooth surfaces without drilling. |
| Magnetic Mounting | Steel vehicle panels, trailers and equipment enclosures | Mount using two ultra-strong 3.5-inch magnets, each rated at over 130 pounds of pull force. With over 260 pounds of total pull force, this option provides a secure attachment to steel vehicle panels, trailers, and equipment enclosures while allowing fast installation and easy repositioning. |
| Permanent Hard-Mount Installation | Trailers, service bodies, walls and equipment enclosures | Integrated mounting U-brackets with pre-drilled holes allow the system to be permanently fastened using screws or bolts, providing maximum stability for fixed installations on trailers, service bodies, walls, and equipment enclosures. |
Integrated Starlink Mini Protection
The included MM1 Protective Mount features a precision-engineered aluminum frame and a durable 5mm polycarbonate cover that shields your Starlink Mini from debris, weather, vibration, and impact while maintaining full satellite signal performance.
Adjustable Angle for Optimal Satellite Performance
The MM6 features built-in ±10° tilt adjustability, allowing you to fine-tune the orientation of your Starlink Mini to compensate for angled vehicle panels or mounting surfaces. This ensures optimal satellite alignment and maximum connection reliability.
Electronic Suction Cup Option (Optional)
Optional electronic suction cups automatically monitor suction pressure and re-pump themselves whenever vacuum drops below 80%, eliminating manual maintenance. Rechargeable via USB, they operate for approximately 2–3 weeks per charge and are water-resistant for reliable outdoor use.
Built for Real-World Mobile and Field Use
Constructed from high-grade aluminum and finished with a durable powder coat, the MM6 is engineered to withstand vibration, weather, and demanding real-world conditions while keeping your Starlink Mini secure and protected.
Ideal For:
• RVs and Overland Vehicles
• Semi Trucks and Fleet Vehicles
• Trailers and Service Bodies
• Heavy Equipment
• Emergency and First Responder Vehicles
• Mobile operations and Field Deployments
• Permanent Infrastructure Installations
Features and specifications
Key Features
- Three Secure Mounting Methods: Supports heavy-duty 6-inch suction cups (manual or electronic), ultra-strong 3.5-inch magnets, or permanent hard-mount installation using integrated pre-drilled U-brackets, giving you complete installation flexibility for both temporary and permanent setups.
- Large 6-Inch Heavy-Duty Suction Cup Mounting: Compatible with oversized 6-inch suction cups for maximum surface contact and holding strength. Available with manual pump suction cups or optional electronic suction cups for effortless installation and reliable long-term performance.
- Optional Electronic Suction Cups with Automatic Self-Pumping: Optional electronic suction cups automatically maintain suction by re-pumping whenever vacuum pressure drops below 80%, eliminating the need for manual maintenance. Rechargeable via standard USB and capable of operating for approximately 2–3 weeks per charge, they are water-resistant and designed for reliable outdoor use.
- Quick Deployment: Ideal for users who need a fast, secure mounting solution for on-the-go or temporary setups.
- Robust Aluminum Construction: Crafted from high-grade aluminum, this case offers unmatched durability while maintaining a sleek, professional appearance.
- Strong 5mm Polycarbonate Starlink Dish Cover: The top layer of the case features a durable, 5mm polycarbonate cover that shields the Starlink Mini dish from debris, weather elements, and potential damage during transport or storage.
- Adjustable Tilt for Optimal Starlink Performance: Features approximately ±10 degrees of angle adjustability, allowing precise alignment of the Starlink Mini to compensate for angled mounting surfaces and ensure optimal satellite connection and signal reliability.
- Built for Mobile and Permanent Installations: Ideal for RVs, semi trucks, fleet vehicles, trailers, heavy equipment, emergency vehicles, and fixed infrastructure installations where vertical mounting is required.
-
Weather Resistant: Designed to withstand extreme weather conditions, this case provides reliable protection against rain, snow, and other environmental hazards.
Product Specifications
- Package Includes: MM1 Protective Mount + VSM (Vertical Surface Mount)
- Material: High-grade aluminum
- Cover: Strong 5mm polycarbonate
- Compatibility: Starlink Mini
- Weather Resistance: Yes
Find these attachments and brackets on our Accessories page.
Frequently asked questions
What is the MM6, and what is included?
The SatGear MM6 combines the MM1 Protective Mount with the VSM (Vertical Surface Mount) attachment. Together, they let you install and protect a Starlink Mini on vertical surfaces. Magnets, manual suction cups or electronic suction cups depend on the mounting option you select. The Starlink Satellite Internet System is sold separately.
You can also hard mount the MM6 without magnets or suction cups using the included U-brackets. Screw the U-brackets directly into a vertical surface through their pre-drilled holes, then use the thumb screws to attach the VSM to the U-brackets. This gives you three installation options: magnets, suction cups, or a hard mount with screws.

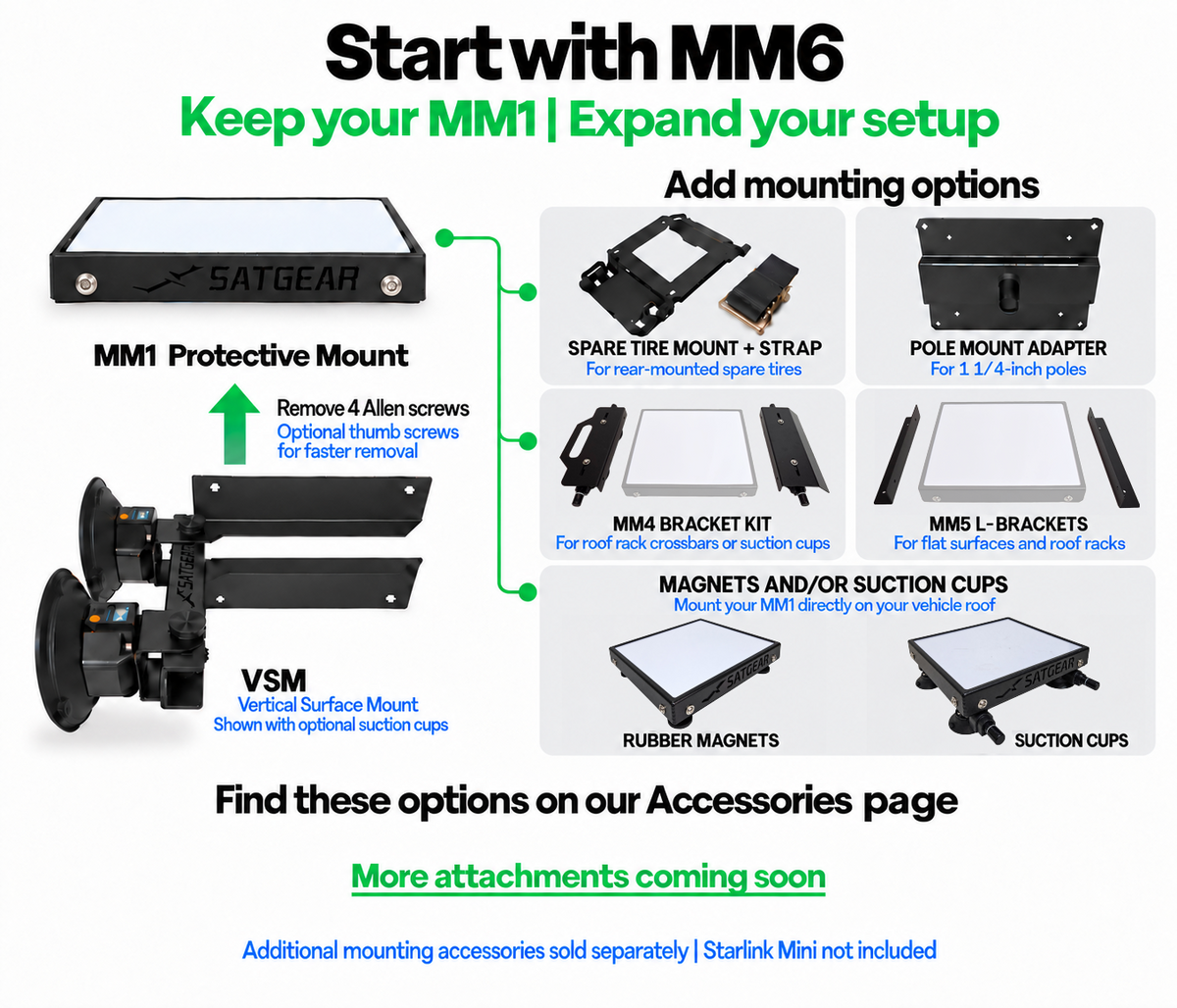

How easy is it to detach the MM1 from the VSM (Vertical Surface Mount)?
It is simple. The MM1 Protective Mount (the top piece of the MM6) attaches to the VSM (Vertical Surface Mount) with four included Allen screws. Remove those four screws to detach the MM1.
If you plan to detach it frequently, you can replace the Allen screws with optional thumb screws from our Accessories page for quicker removal by hand. This makes it easy to move your MM1 to other compatible SatGear setups, such as a spare tire mount, the MM3 roof rack tray or a pole mount.
Can I mount the MM6 without drilling?
Yes. Choose suction cups for a suitable smooth surface or magnets for a suitable steel surface. Both options allow installation without drilling. The MM6 also supports permanent installation with screws or bolts through its pre-drilled U-brackets.
Where can I install the MM6?
The MM6 is designed for vertical surfaces such as vehicle side panels, RV walls, trailers, semi trucks, vans, service bodies, equipment enclosures and shipping containers. Choose suction cups, magnet cups, or use the included U-brackets for a permanent installation with screws.
What is the difference between the manual and electronic suction cups?
Both options use two large 6-inch suction cups. The manual version uses a hand-operated pump. The optional electronic version monitors suction pressure and automatically re-pumps when vacuum drops below 80%. The electronic cups are USB-rechargeable, water-resistant and operate for approximately 2–3 weeks per charge.
What surface do the MM6 suction cups need?
The 6-inch suction cups can be used on smooth vertical surfaces such as glass and metal, including vehicle panels, RV walls, heavy machinery and utility vehicles. Each cup needs a clean, flat area at least 6 inches across, without indents or ridges that interrupt the seal.
The surface does not have to be perfectly smooth. The suction cups can also work on lightly textured vertical surfaces, such as textured powder-coated panels or the flat areas of shipping-container walls, as long as each cup forms and maintains a complete seal.
How strong are the MM6 magnets?
The MM6 magnetic mounting option uses two ultra-strong magnets, each rated at over 130 pounds of pull force, for over 260 pounds of combined pull force. They attach to suitable steel panels and allow fast installation and repositioning. Check that your mounting panel attracts a magnet.
Can I permanently mount the MM6?
Yes. Permanently fasten the included U-brackets to a vertical surface with screws or bolts, then attach the VSM (Vertical Surface Mount) to the U-brackets using the thumb screws. You can leave the U-brackets installed and remove the VSM whenever you need to move it.
Additional sets of U-brackets let you prepare multiple mounting locations and move the same VSM between them. For example, leave one set of U-brackets screwed to a shipping container, then move the VSM to another location using a second set of U-brackets fitted with magnets or suction cups for use on an RV or utility vehicle.
You can purchase extra U-brackets from our Accessories page to create the setups you need.
Can I adjust the angle of the MM6?
Yes. The MM6 provides approximately ±10° of tilt adjustment so you can fine-tune the Starlink Mini’s orientation and compensate for angled vehicle panels or other mounting surfaces.
How does the MM6 protect Starlink Mini?
The included MM1 Protective Mount has an aluminum housing and a durable 5mm polycarbonate top cover. It helps protect the Starlink Mini’s top, bottom and edges from debris, vibration, impact and outdoor exposure. Think of it like a phone case combined with a screen protector for your Starlink Mini.
Are magnets and suction cups included with every MM6 order?
They depend on the mounting option you select. Available choices include hardware only, rubber magnets, manual suction cups, electronic self-pumping suction cups, or suction cups combined with rubber magnets. The hardware-only option does not include magnets or suction cups, but it does include the U-brackets for hard mounting the MM6 to a vertical surface using screws.
